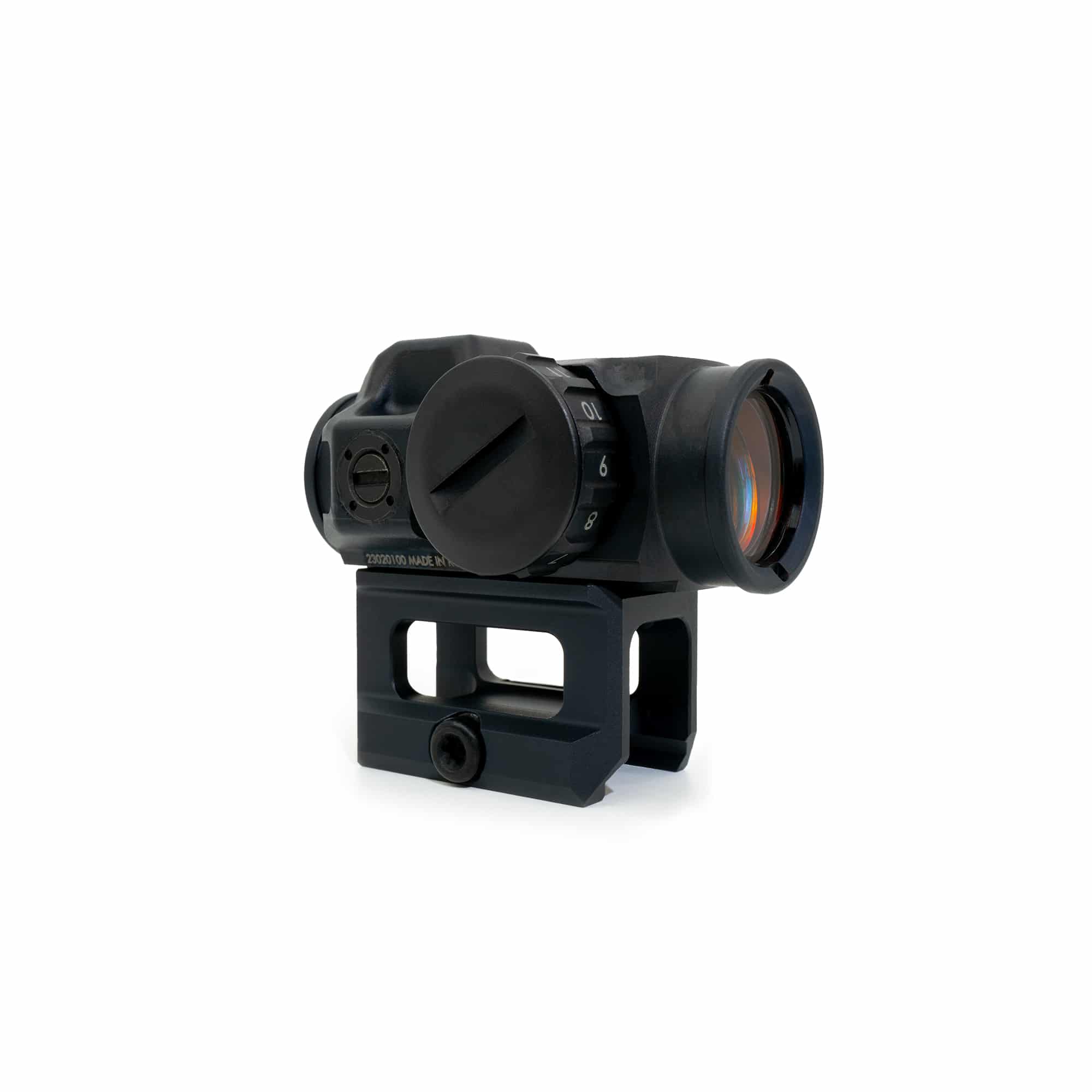

CORE-2 ADVANCED MILITARY GRADE OPTIC

Kalashnikov USA is proud to introduce our military grade  ‘CORE-2’ 2 MOA Red Dot sight, which provides fast target acquisition for users by using the unlimited eye-relief and the aligned aiming point reflected on the collimated lens. The fully sealed and waterproof forged 7075-T6 housing supports users to carry out their missions in the harshest environments. It features high-quality lens coating for excellent light transmission and super low distortion along with light-weight and compact size to reduce user’s fatigue and visual disturbance. This optic is currently in use by the South Korean military and special forces units.

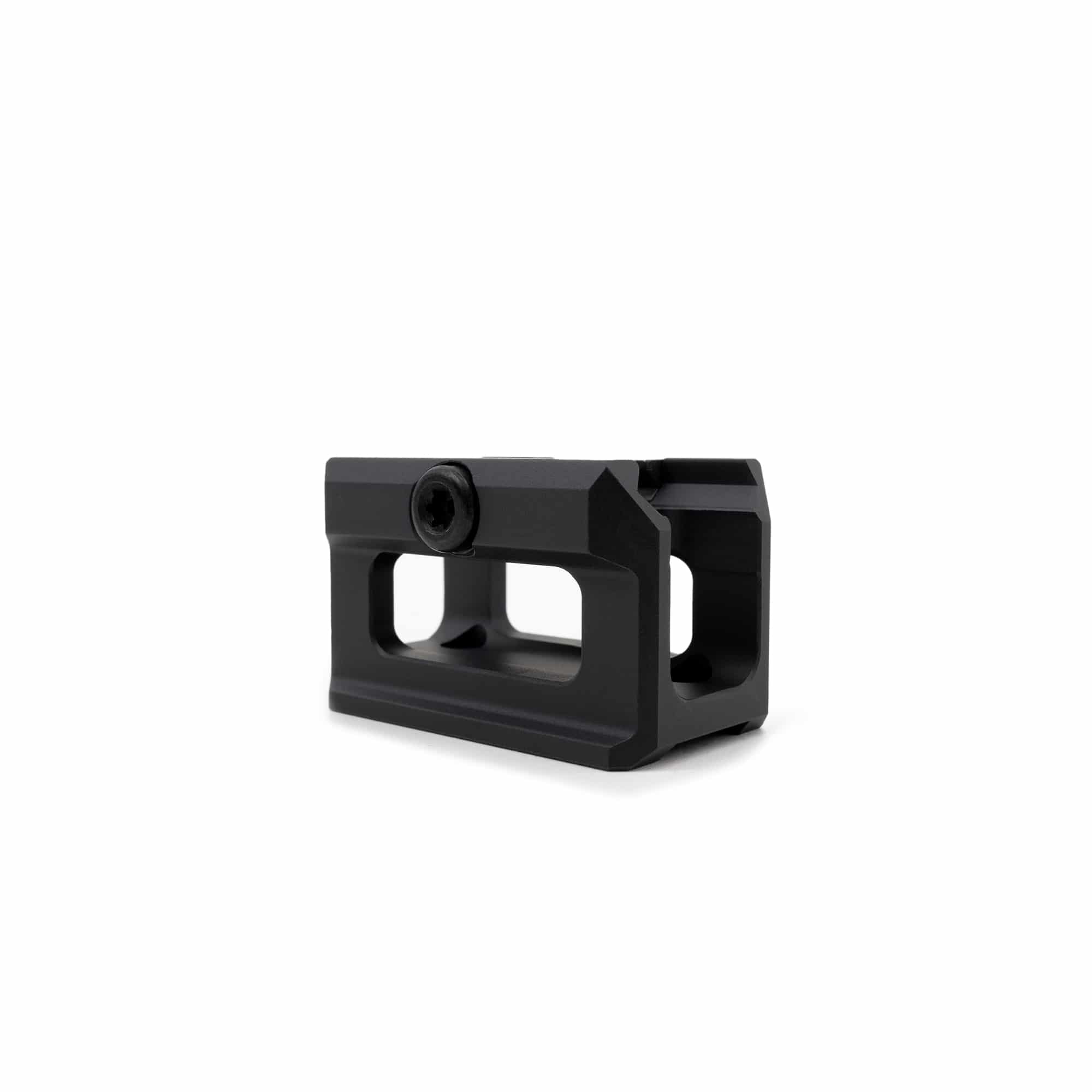

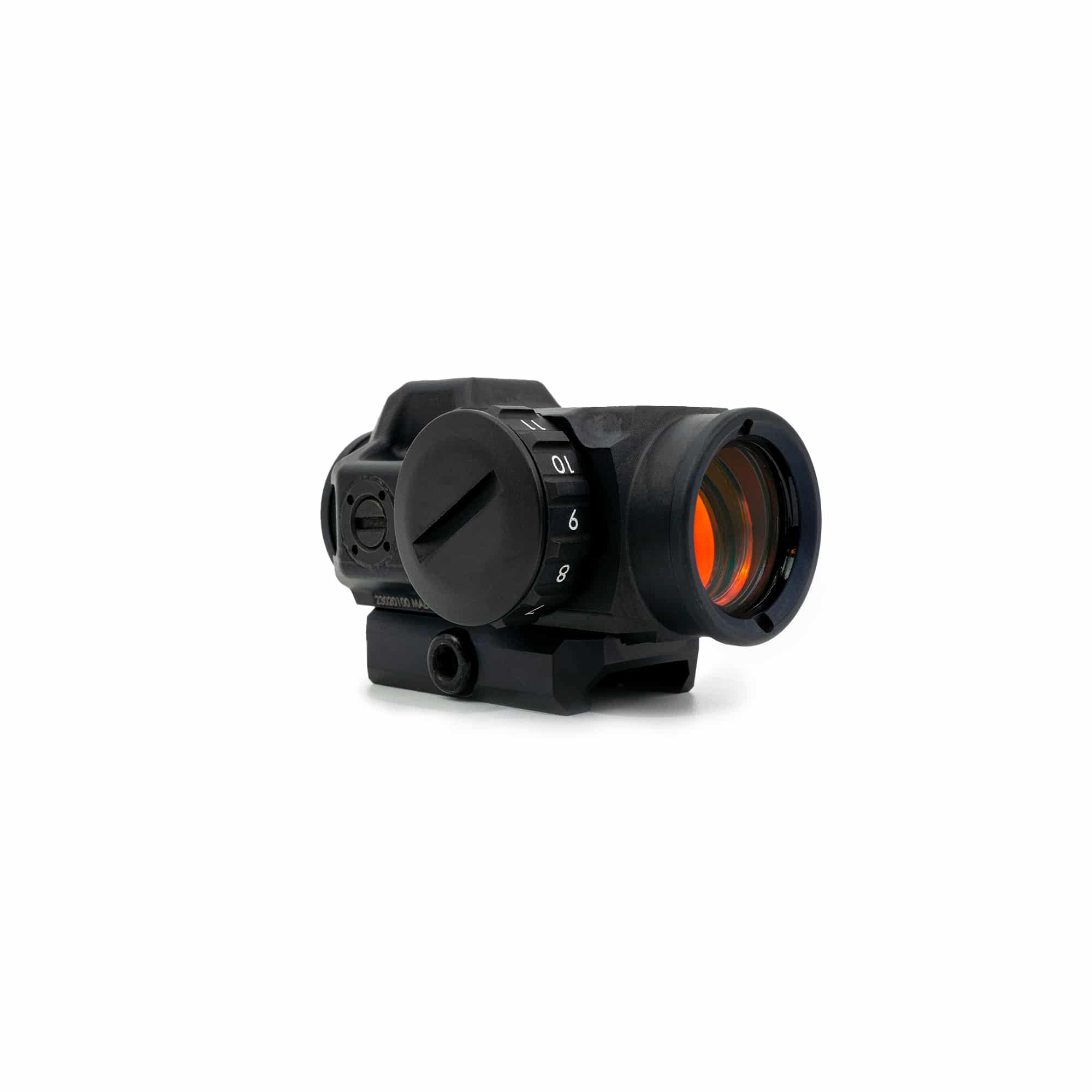

***OPTIC INCLUDES LOW MOUNT*** HIGH MOUNT SOLD SEPARATELY

SPECIFICATIONS: MECHANICS

• Size – 3.8mm x 37.2mm x 71.0mm (W/O Mount) 43.8mm x 66.2mm x 71.0mm (W/ High Mount)
• Weight – 117.5 g (W/O Mount) 171.5 g (W/ 39mm High Mount)
• Material – AL7075-T6 (FORGED)
• Coating – MIL-A-8625 Type III, Hard Anodizing, Class 2
• Optical axis height – 39 mm (0.1535’) / High Mount
• Click Adj Range – 0.5 MOA / CLICK
• Adjustment Range – ±40 MOA U/D, ±40 MOA L/R
• Mounting – STANAG 2324 or MIL-STD 1913 Picatinny Rail

ELECTRONIC:

• Battery-CR2032 (Lithium) x 1ea
• Battery Life– 50,000 Hrs @ Level #6180 Hrs @ Level #11
• Brightness levels– OFF /  LV #1 ~ 4 (Night), 5 ~ 11 (Day)

ENVIROMENTAL: (MIL-STD-810G)

• Temperature  – 32°C to +71°C (-25.6°F to 159.8°F) / Operation- 46°C to +71°C (-50.8°F to 159.8°F) / Storage
• Recoil – X-axis : 500g, 1ms, 3 Times in each direction Y, Z-axis : 40G, 11ms, 3 Times in each direction
• Water Proof–  IP68 (EC 60529)- 25, (82FT for 30 min)
• Salty Water – 5 ± 1% Salty Water Spray 35 ℃ ± 2 ℃ Temperature Remaining 48 Hrs Exposure / 48 Hrs Dry

OPTICAL:

• Objective Lens – 20mm diameter
• Dot Size – 2 MOA
• Optical Coating– Multi-Layers AR (Anti -Water Coating)
• Magnification – 1x
• Eye Relief – Unlimited
• Magnification – 650NM
•

***Battery Not Included***
