CORE-1 ADVANCED MILITARY GRADE OPTIC

Kalashnikov USA is proud to introduce our military grade CORE-1 – 2 MOA Red Dot sight provides fast target acquisition for users by using the unlimited eye-relief and the aligned aiming point reflected on the collimated lens. The fully sealed and waterproof forged 7075-T6 housing supports users to carry out their missions in the harshest environments. It features high-quality lens coating for excellent light transmission and super low distortion along with light-weight and compact size to reduce user’s fatigue and visual disturbance. This optic is currently in use by the South Korean military and special forces units.

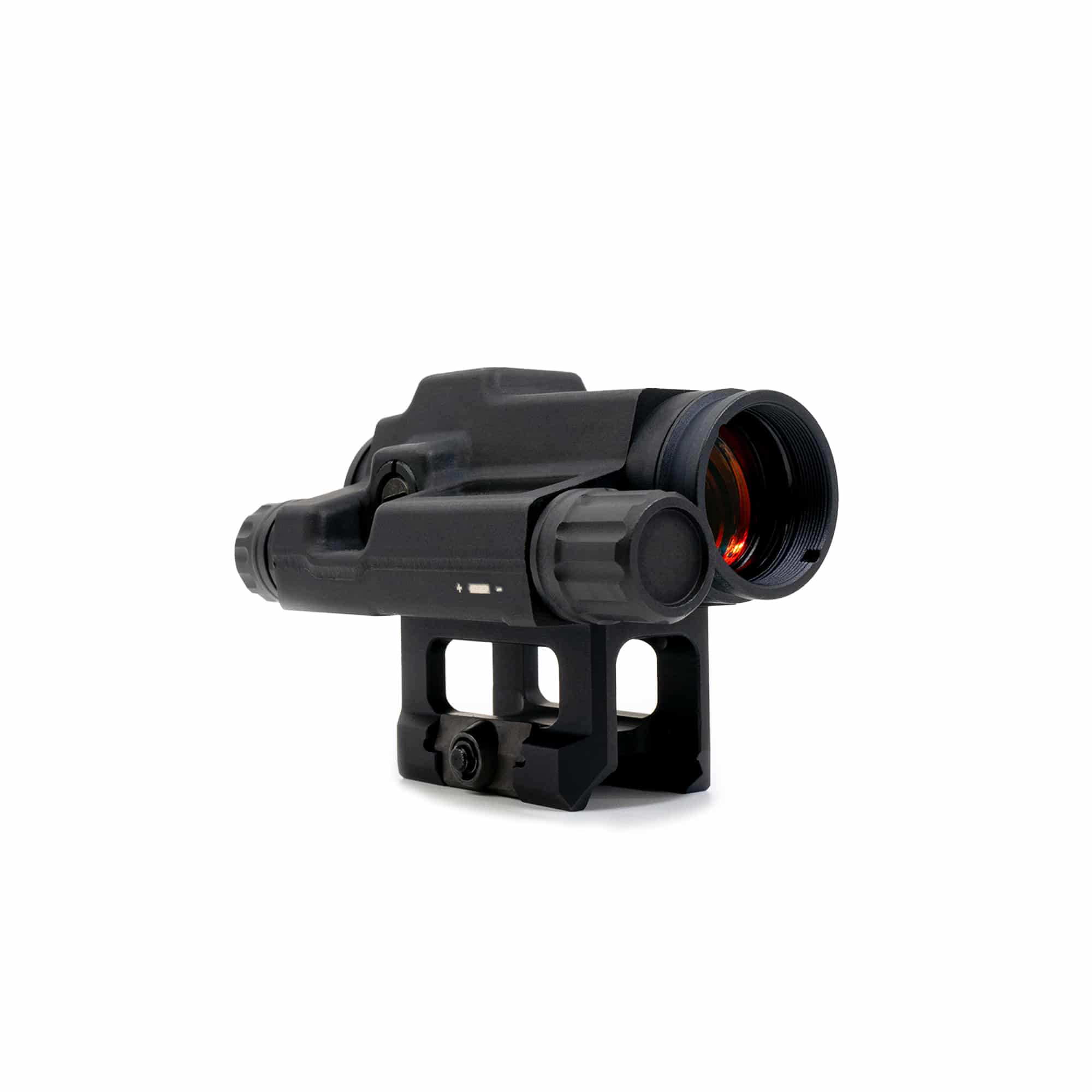

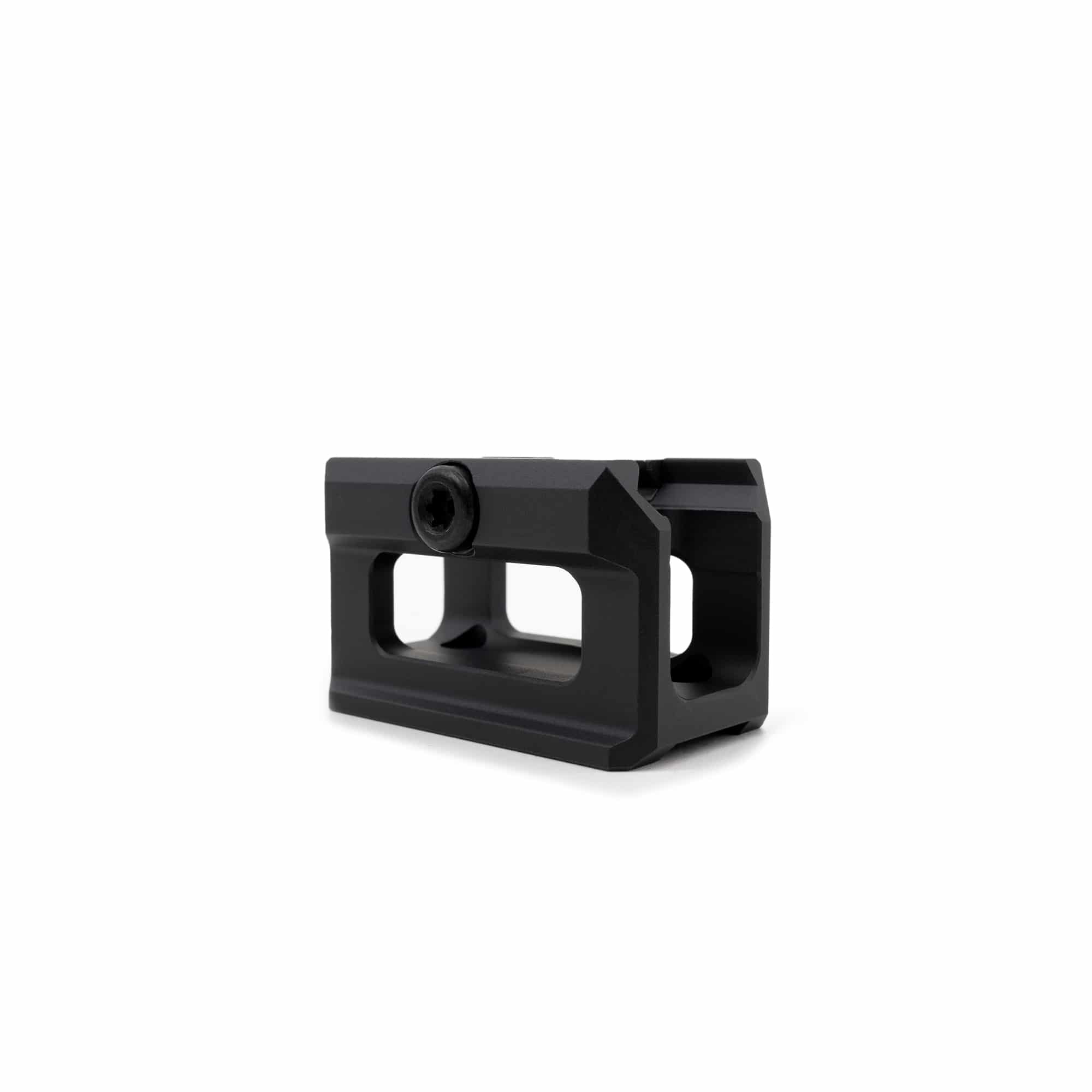

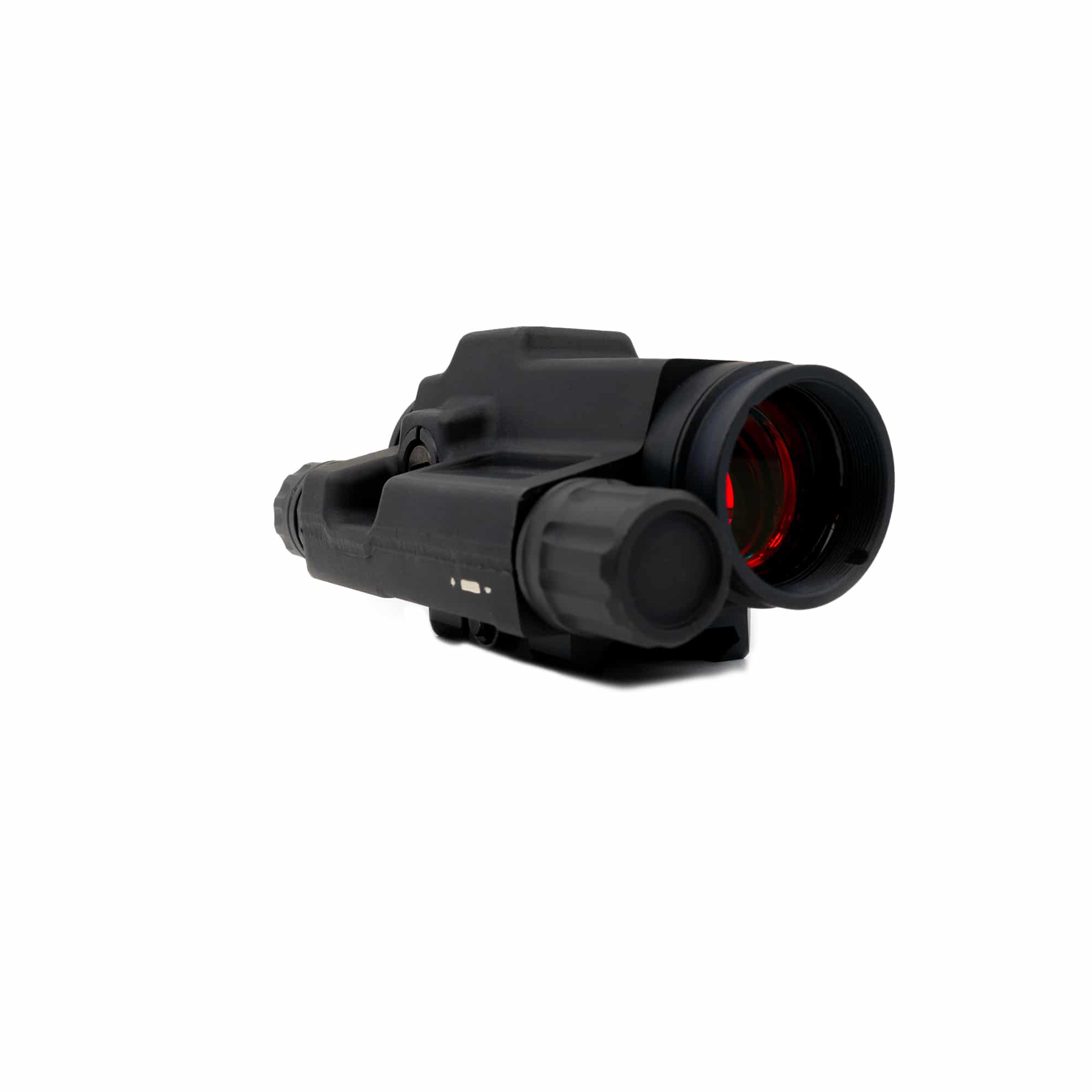

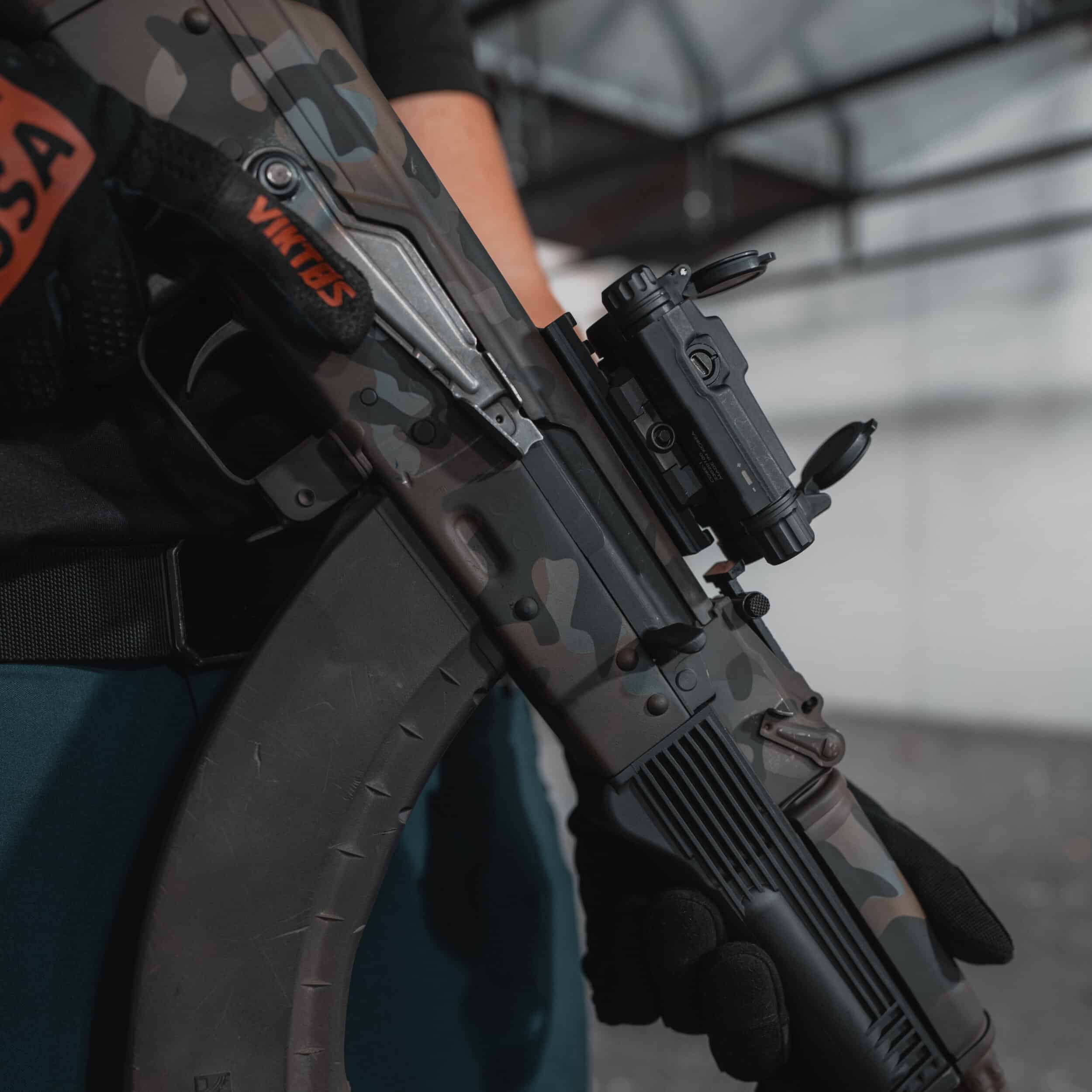

***OPTIC INCLUDES LOW MOUNT*** HIGH MOUNT SOLD SEPARATELY

SPECIFICATIONS: MECHANICS

• Size – 49.5mm x 37.2mm x 98.2mm (W/O Mount) (49.5mm x 66.2mm x 98.2mm (W/High Mount)
• Weight –  5.8 ounces (W/O Mount) ( 7.86 ounces (W/39mm High Mount)
• Material – AL7075-T6 (Forged)
• Coating- MIL-A-8625 Type III, Hard Anodizing, Class 2
• Optical Axis height– 39 mm (0.1535’) / High Mount
• Click Adj Range – 0.5 MOA / CLICK
• Adjustment Range – ±40 MOA U/D, ±40 MOA L/R
• Mounting – STANAG 2324 or MIL-STD 1913 Picatinny Rail

——————————————————————————————————————————————————————————————————————————-

ELECTRONIC

• Battery – AAA (Lithium or Alkaline) x 1ea
• Battery Life – 65,000 Hrs @ Level #7 (450 Hrs @ Level 11)
• Brightness Levels – OFF/ LV#1~4(Night), 5 ~ 11 (Day)

——————————————————————————————————————————————————————————————————————————-

ENVIROMENTAL (MIL-STD-810G)

• Temperature – – 32°C to +71°C (-25.6°F to 159.8°F) / Operation
  – 46°C to +71°C (-50.8°F to 159.8°F) / Storage
• Recoil -X-axis : 1000g, 1ms, 3 Times in each direction Y, Z-axis : 40G, 11ms, 3 Times in each direction
• Water-Proof – IP68 (IEC60529) 50m(164ft) for 30 minutes
• Salty Water –  5 ± 1% Salty Water Spray
  35 ℃ ± 2 ℃ Temperature Remaining 48 Hrs Exposure / 48 Hrs Dry

OPTICAL

• Objective Lens – 20mm diameter
• Dot Size – 2 MOA
• Optical coating – Multi-layers AR- Anti-Water Coating
• Magnification – 1x
• Eye relief – Unlimited
• Magnification – 650nm

***Battery Not Included***
